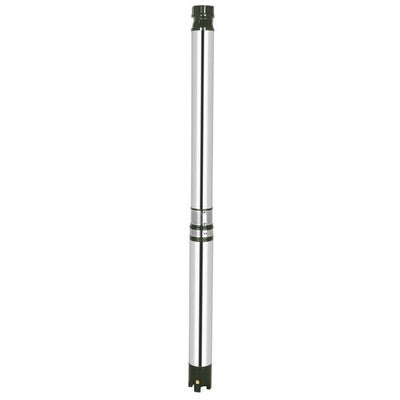

Bore Well Submersible 2HP 12 Stage 100mm V-4 YM-7
Bore Well Submersible 2HP 12 Stage 100mm V-4 YM-7
नियमित रूप से मूल्य
Rs. 18,699.00
नियमित रूप से मूल्य
Rs. 19,999.00
विक्रय कीमत
Rs. 18,699.00
कर शामिल हैं.
शिपिंग की गणना चेकआउट पर की जाती है।
मात्रा
पिकअप उपलब्धता लोड नहीं की जा सकी
V-4 100MM BORE WELL SUBMERSIBLE PUMP SET 2 H.P. 12 STAGE THREE PHASE
YM-7
.jpg)
Approved by ISI
Description:
|
|||||||||||||||||
| → Corrosion resistant stainless steel body. | |||||||||||||||||
| → Specially designed to start in low voltage and sustain in high voltage fluctuations. | |||||||||||||||||
| → High electrical and mechanical efficiency. | |||||||||||||||||
| → Higher heat dissipation. | |||||||||||||||||
| → Dynamically balanced rotor and other rotating parts for uniform clearance. | |||||||||||||||||
| → Specially designed bearing to withstand axial thrust loads. | |||||||||||||||||
| → Designed for high voltage fluctuations. | |||||||||||||||||
| → Noise free operation. | |||||||||||||||||
| → Modular design and all parts are easily interchangeable. | |||||||||||||||||
| → Energy Efficient Models. | |||||||||||||||||
| → Higher efficiency resulting in lower operating cost. | |||||||||||||||||
| APPLICATION | |||||||||||||||||
| → Agriculture Farm | |||||||||||||||||
| → Industries Water Supply | |||||||||||||||||
| → Sprinkler & Drip Irrigation | |||||||||||||||||
| → Gardens | |||||||||||||||||
| → Residential Complex - High rise Buildings | |||||||||||||||||
| → Hospitals | |||||||||||||||||
| → Water Treatment Plant | |||||||||||||||||
| TECHNICAL DATA | |||||||||||||||||
| MODEL BORE SIZE |
→ YM-7 → 100 MM (4") |
||||||||||||||||
| POWER | → 1.50 Kw | ||||||||||||||||
| H.P. | → 2.00 | ||||||||||||||||
| STAGE | → 12 | ||||||||||||||||
| CURRENT IN AMPS | → 4.50 | ||||||||||||||||
| VERSION | → THREE PHASE 250 TO 440 VOLT | ||||||||||||||||
| RATED SPEED IN RPM | → 2880 | ||||||||||||||||
| FREQUENCY | → 50 Hz | ||||||||||||||||
| CATEGORY | → B | ||||||||||||||||
| DUTY TYPE | → S1 (CONTINUOUS) | ||||||||||||||||
| TYPE | → WET TYPE | ||||||||||||||||
| CONNECTION | → STAR | ||||||||||||||||
| OPERATING DATA | |||||||||||||||||
| DUTY POINT HEAD | → 48 METERS | ||||||||||||||||
| DUTY POINT DISCHARGE | → 115 LPM 6.90 m³/hr | ||||||||||||||||
| OPERATING HEAD RANGE | → 36 TO 95 METERS | ||||||||||||||||
| OPERATING DISCHARGE RANGE | → 155 TO 20 LPM | ||||||||||||||||
| OUT LATE | → 40 MM (1.50") | ||||||||||||||||
| CORRECT SPEED IN RPM | → 2800 | ||||||||||||||||
| MAXIMUM FLOW RATE | → 195 LPM 11.70 m³/hr | ||||||||||||||||
| TOTAL HEAD MAXIMUM OPERATING PRESSURE |
→ 99 METERS → 9.90 Bar |
||||||||||||||||
| MAXIMUM LIQUID TEMPERATURE | → 35º | ||||||||||||||||
| PARTICULARS | MATERIALS OF CONSTRUCTION | ||||||||||||||||
| MOTOR BODY / PUMP BODY | → S.S. 202 | ||||||||||||||||
| BEARING BUSH | → LTB - 4 BRONZE | ||||||||||||||||
| MOTOR SHAFT / PUMP SHAFT | → S.S.410 | ||||||||||||||||
| THRUST BEARING | → S.S. 420 & GRAPHITE CARBON | ||||||||||||||||
| HOUSING / BASE / NRV / SUCTION | → CI - FG -200 | ||||||||||||||||
| STAMPING | → CRNO - M45 | ||||||||||||||||
| SCREWS / STUDS | → S.S. 410 & S.S. 202 | ||||||||||||||||
| IMPELLER / BOWL | → NORYL GNF2 TECHNO POLYMER | ||||||||||||||||
| WINDING WIRE | → E.C. GRADE HIGH INSULATION | ||||||||||||||||
| ROTOR | → E.C. GRADE COPPER & CRNO - M45 | ||||||||||||||||
| PCD CUP | → NITRILE RUBBER | ||||||||||||||||
Manufactured, Marketed, and Dispatched by: Yash Manufacturers
Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
