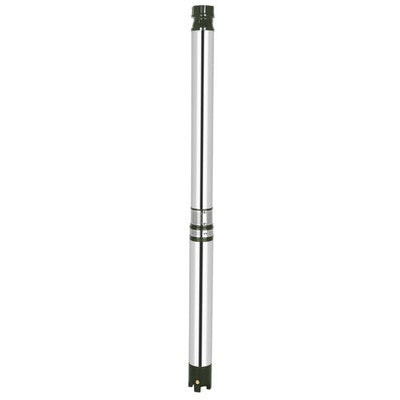

Bore Well Submersible 5HP 35 Stage 100mm V-4 YM-4

Bore Well Submersible 5HP 35 Stage 100mm V-4 YM-4

Rs. 33,099.00
Rs. 36,099.00 Rs. 33,099.00
बिक्री बिक गया
कर शामिल हैं. शिपिंग की गणना चेकआउट पर की जाती है।

V-4 100MM BORE WELL SUBMERSIBLE PUMP SET 5 H.P. 35 STAGE THREE PHASE

YM-4


46 BEE( BUREAU OF ENERGY EFFICIENCY) 5 Star Model


Description:
SALIENT FEATURES
→ Corrosion resistant stainless steel body.
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex - High rise Buildings
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL
BORE SIZE		 → YM-4T
→ 100 MM (4")
POWER → 3.70 Kw
H.P. → 5.00
STAGE → 35
CURRENT IN AMPS → 10.00
VERSION → THREE PHASE 250 TO 440 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → STAR
OPERATING DATA
DUTY POINT HEAD → 140 METERS
DUTY POINT DISCHARGE → 67 LPM 4.00 m³/hr
OPERATING HEAD RANGE → 105 TO 215 METERS
OPERATING DISCHARGE RANGE → 95 TO 20 LPM
OUT LATE → 32 MM (1.25")
CORRECT SPEED IN RPM → 2820
MAXIMUM FLOW RATE → 115 LPM 6.90 m³/hr
TOTAL HEAD
MAXIMUM OPERATING PRESSURE		 → 219 METERS
→ 21.9 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY / PUMP BODY → S.S. 202
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT / PUMP SHAFT → S.S.410
THRUST BEARING → S.S. 420 & GRAPHITE CARBON
HOUSING / BASE / NRV / SUCTION → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS → S.S. 410 & S.S. 202
IMPELLER / BOWL → NORYL GNF2 TECHNO POLYMER
WINDING WIRE → E.C. GRADE HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45
PCD CUP → NITRILE RUBBER

​Manufactured, Marketed, and Dispatched by: Yash Manufacturers

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
