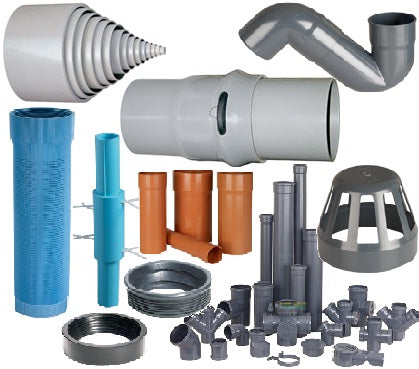

Refer to our PVC Pipes Parts catalog in Download Section, select the parts with its number and submit this inquiry stating your requirements with part numbers. Even you can check its dimentions here on this webpage.
Features and Specifications of B-SURE™ SWR Pipe Fittings:
Modern & Smart.
Easy to install.
Economical.
UV stabilized to ensure lifetime endurance.
Specially compounded to withstand rugged outdoor installation .
Smooth finish to ensure non choking system.
Durable for hot waste water disposal.
Maintenance Free
Product Specification
SWR Fittings
Confrming to DIN : 19531/19534
Available both in Solvent Cement Joints & Rubber Ring Joints.
Pipe-Clip Spacing Distance:
Size
75
90
110
160
Horizontal (in mtr.)
0.9
0.9
0.9
1.2
Vertical (in mtr.)
1.8
1.8
1.8
1.8
Test Parameter as per IS:14735
S.No.
Parameter
Value
1.
Impact test
No Fracture Crack
2.
Vicat Softening Temp.
Min. 78ºC
3.
Resistance to H2SO4
Neither increase by >0.32 g nor decrease by >0.13 g.
4.
Stress Relief Test
No signs of blisters, Crack, Weld line splitting & delamination
5.
Sulphate Ash Content
Max. 10% by mass
6.
Water Tightness of Joint
No leakage from joint at 0.05 MPa
* Fittings are available in 75 mm & 110 mm sizes.
Single T (Rubber Ring Joint Fitting)
Single T With Door (Rubber Ring Joint Fitting)
Nominal Dia.
W
L
H
B
C
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
172
144
184
51
90
3.2
260
312
110
220
194
248
69
126
3.2
485
580
Double Tee (Rubber Ring Joint Fitting)
Double Tee With Door (Rubber Ring Joint Fitting)
Nominal Dia.
W
L
H
B
C
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
200
185
130
51
90
3.2
306
392
110
260
248
172
69
126
3.2
567
720
Double Tee (Plain Joint Fitting)
Nominal Dia.
H
L
W
B
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
196
184.5
115
51
3.2
293
392
110
260
248
172
69
3.2
567
720
Single Y (Rubber Ring Joint Fitting)
Single Y With Door (Rubber Ring Joint Fitting)
Nominal Dia.
W
L
H
B
C
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
211
90
98
175
214
3.2
304
374
110
289
126
140
244
280
3.2
580
686
Single Y With Door (Plain Joint Fitting)
Nominal Dia.
W
L
H
B
C
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
211
90
98
175
214
3.2
304
374
110
289
126
140
244
280
3.2
580
686
Double Y (Rubber Ring Joint Fitting)
Double Y With Door (Rubber Ring Joint Fitting)
Nominal Dia.
W
L
H
B
C
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
213
262
98
130
90
3.2
390
469
110
289
363
140
172
126
3.2
760
908
Double Y With Door (Plain Joint Fitting)
Nominal Dia.
H
L
W
B
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
215
268
115
98
3.2
376
461
110
291.5
372
149
140
3.2
760
908
45º Bend (Rubber Ring Joint Fitting)
Nominal Dia.
C
B
W
H
E
Min
Approx Weights (gms)
Plain
75
90
27
110
146
3.2
141
110
126
34
155
194
3.2
269
45º Bend (Plain Joint Fitting)
Nominal Dia.
B
W
H
E
Min
Approx Weights (gms)
Plain
75
27
113.5
149.5
3.2
141
110
34.5
158.5
199.5
3.2
269
87.5º Bend (Rubber Ring Joint Fitting)
87.5º Bend With Door (Rubber Ring Joint Fitting)
Nominal Dia.
B
C
L
L1
H
H1
E
Min
Approx Weights (gms)
Plain
Approx Weights (gms)
With Door
75
47
90
134
152
134
143
3.2
171
227
110
64
126
183
202
185
197
3.2
336
435
Cleansing Pipe (Rubber Ring Joint Fitting)
Nominal Dia.
H
B
C
E
Min
Approx Weights
(gms)
75
184
120
90
3.2
259
110
248
154
126
3.2
501
Cleansing Pipe (Plain Joint Fitting)
Nominal Dia.
H
B
E
Min
Approx Weights
(gms)
75
188
115
3.2
259
110
250
149
3.2
501
Reducer (Rubber Ring Joint Fitting)
Nominal Dia.
B
L
C
Approx Weights (gms)
110 x 75
37
137
90
259
Reducer (Plain Joint Fitting)
Nominal Dia.
A
L
B
E
min
Approx Weights (gms)
110 x 75
37
141
17.5
3.2
182
Rubber Seal Ring
Nominal Dia.
A
B
L
75
85
71
10
110
122
106
10
Nahani Trap, Nahani Trap Jali (Rubber Ring Joint Fitting)
