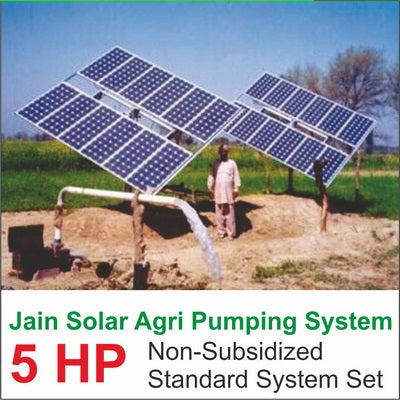

Jain Solar Agri Pumping 5 Hp 4800 Wp 70 Mtr Fix Stand Regular

Jain Solar Agri Pumping 5 Hp 4800 Wp 70 Mtr Fix Stand Regular

Rs. 378,099.00
Rs. 378,099.00
बिक्री बिक गया
कर शामिल हैं. शिपिंग की गणना चेकआउट पर की जाती है।
JAIN SOLAR AGRI PUMPING 5 HP 4800 WP 70 Mtr FIX STAND REGULAR
Model: 70 Meters / 5 HP / 4800 Wp / Fix Stand – Regular.
No need to process any Subsidy.

This Standard Set includes Pump, Controller, Solar Panels, Structure, Piping, Fittings, Cable with Connectors, Earthing Kit & Lightning Arrester, etc.

DISCHARGE TABLE/LENGTH OF CABLE & PIPE CONSIDERED IN COMPLETE SYSTEM
3HP - 3000Wp - DC SUBMERSIBLE 5HP – 4800W - DC SUBMERSIBLE
Head 20 Meters 50 Meters 70 Meters 100 Meters Head 20 Meters 50 Meters 70 Meters 100 Meters
Discharge (Liters Per Day) 150000 Liters 63000 Liters 42000 Liters 28500 Liters Discharge (Liters Per Day) 240000 Liters 100800 Liters 67200 Liters 45600 Liters
Pipe Length 15 Meters 35 Meters 55 Meters 75 Meters Pipe Length 15 Meters 35 Meters 55 Meters 75 Meters
Pump Cable Length 25 Meters 45 Meters 65 Meters 85 Meters Pump Cable Length 25 Meters 45 Meters 65 Meters 85 Meters

TECHINCAL DETAILS
Solar PV Module Make Jain Irrigation Systems Limited
Type Multi Crystalline
Module Capacity 300Wp
Certified IEC 61215, IEC 61730 Part I & II, IEC 61701
Solar Submersible Pump Make Jain Irrigation Systems Limited
Type BLDC Submersible Pump – 3HP and 5HP
Certified MNRE Approved
Solar Pump Controller Make Jain Irrigation Systems Limited
Type MPPT Based
Certified MNRE Approved
Module Mounting Structure Make Jain Irrigation Systems Limited
Type Galvanized
Balance of System Riser Pipe PE Coil – Jain make
Earthing kit & Lightning Arrestor Provided
Other Material Rope, Bore cap, Floating Platform etc.

Difference between Regular & Deluxe model:
Regular model: Structure suitable for maximum wind velocity of 80 KMPH.
Deluxe model: Structure suitable for maximum wind velocity of 150 KMPH.

TERMS & CONDITIONS:
  • Offer Price is inclusive of GST & Paid Transportation upto your nearest townplace transport office.
  • Standard installation and commissioning will be done by third party agency.
  • Civil work & extra installation charges (if required) will be done by customer at his cost. We will provide drawing for the same.
  • Warranty: 1 year system warranty against manufacturing defects only in which wear and tear is not covered. (Refer the warranty clause link at the bottom of the page)
  • Delivery: ‐ Min. 4 – 6 Weeks after Order.

NOTE:
  • The above Discharge is based on 3 times manual tracking System, customer will have to do tracking for three times in a day.
  • Discharge will reduce up to 15% in case of fixed stand system and increases up to 10% in case of Single Axis Automatic tracking system.
  • The discharge given above is based on ideal conditions & test parameters. Actual discharge will vary depending on seasons, climate & solar radiation & due to change in location (latitude and longitude).
  • While calculating the head, it is necessary to consider pump setting depth, height where water is required. Similarly consider pipeline losses/head, if any, drip/sprinkler/rain gun to be connected to the pump set etc.
  • Installation area should be shadow free.

REQUIRED WATER QUALITY:
pH 6 to 8
Total dissolved solids-TDS(PPM) 1,000 maximum
Chloride (PPM) 500 maximum
Fe (PPM) 2 maximum
Co2 (PPM) 50 maximum
O2 (PPM) 2 minimum
Sand content 50 g/m3 maximum


Click here to see JISL Warranty for this Solar Pumping Systems
