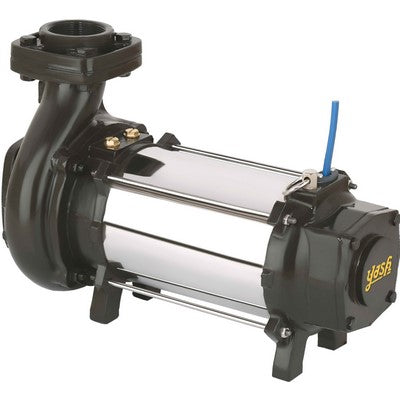

Open Well Submersible 5HP 65x50mm S.S. Body (Copper Rotor) V-8 YM8-538

Open Well Submersible 5HP 65x50mm S.S. Body (Copper Rotor) V-8 YM8-538

Rs. 23,399.00
Rs. 24,674.00 Rs. 23,399.00
बिक्री बिक गया
कर शामिल हैं. शिपिंग की गणना चेकआउट पर की जाती है।

V-8 OPEN WELL SUBMERSIBLE PUMP SET 5.00 H.P. (65X50) THREE PHASE (COPPER ROTOR) S.S. BODY

YM8-538


Approved by ISI


46 BEE( BUREAU OF ENERGY EFFICIENCY) 5 Star Model

Description:
SALIENT FEATURES
→ Corrosion resistant stainless steel body.
→ Specially designed to start in low voltage and sustain in high voltage fluctuations.
→ High electrical and mechanical efficiency.
→ Higher heat dissipation.
→ Dynamically balanced rotor and other rotating parts for uniform clearance.
→ Specially designed bearing to withstand axial thrust loads.
→ Designed for high voltage fluctuations.
→ Noise free operation.
→ Modular design and all parts are easily interchangeable.
→ Energy Efficient Models.
→ Higher efficiency resulting in lower operating cost.
APPLICATION
→ Agriculture Farm
→ Industries Water Supply
→ Sprinkler & Drip Irrigation
→ Gardens
→ Residential Complex
→ Hospitals
→ Water Treatment Plant
TECHNICAL DATA
MODEL → YM8-538
POWER → 3.70 Kw
H.P. → 5.00
STAGE → 01
CURRENT IN AMPS → 10.00
VERSION → THREE PHASE 250 TO 440 VOLT
RATED SPEED IN RPM → 2880
FREQUENCY → 50 Hz
CATEGORY → B
DUTY TYPE → S1 (CONTINUOUS)
TYPE → WET TYPE
CONNECTION → STAR
OPERATING DATA
DUTY POINT HEAD → 32 METERS
DUTY POINT DISCHARGE → 495 LPM 29.70 m³/hr
OPERATING HEAD RANGE → 24 TO 38 METERS
OPERATING DISCHARGE RANGE → 593 TO 254 LPM
SUCTION → 65 MM (2.5")
DELIVERY → 50 MM (2.0")
CORRECT SPEED IN RPM → 2840
MAXIMUM FLOW RATE → 660 LPM 39.60 m³/hr
TOTAL HEAD → 40 METERS
MAXIMUM OPERATING PRESSURE → 4.00 Bar
MAXIMUM LIQUID TEMPERATURE → 35º
PARTICULARS MATERIALS OF CONSTRUCTION
MOTOR BODY → S.S. 202
BEARING BUSH → LTB - 4 BRONZE
MOTOR SHAFT → S.S.410
THRUST BEARING → S.S. 420 RING & FIBER PLATE
HOUSING / BACK COVER → CI - FG -200
STAMPING → CRNO - M45
SCREWS / STUDS / OTHER PARTS → S.S. 410 & S.S. 202
IMPELLER → CI - FG - 200
CASING → CI - FG - 200
WINDING WIRE → E.C. GRADE COPPER / HIGH INSULATION
ROTOR → E.C. GRADE COPPER & CRNO - M45

​Manufactured, Marketed, and Dispatched by: Yash Manufacturers

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
