Yash Pumps

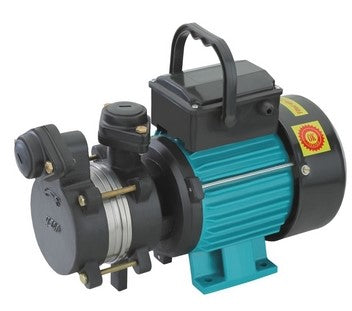

Self Priming Pump 0.50HP 12x12mm YM-DV1 C.I

Self Priming Pump 0.50HP 12x12mm YM-DV1 C.I

Rs. 5,299.00
Rs. 5,299.00
बिक्री बिक गया
कर शामिल हैं. शिपिंग की गणना चेकआउट पर की जाती है।

Domestic Self Priming Pump 0.50 H.P. 12mmx12mm
YM-DV1 C.I

Description:

  • Used For Water Supply in Residential Bungalows, Flats, Hotels, Garages, Dairies And Laundries.

  • Water Circulation for Fountains And Solar Heater Systems.

  • Gardening and Curing At Civil Works.

  • Used as Suction Booster In Cities.

  • Ornamental Sprinklers.


Technical Data

Power

0.37kW

HP

0.50

Version

Single Phase, 160 – 240Volt
(Permanent Split Capacitor)

RPM

2880

Frequency

50Hz

Insulation Class

B

Duty Type

S1 (Continuous)


Operating Data

Duty Point Head

18 Meters

Duty Point Discharge

1400 LPH

Suction lift

8 meters

Total head

40 meters

Nominal pump size in mm

12x12 (sucxdel)

Maximum Flow rate

3.3 m³/hr / 55 LPH

Maximum operating pressure

4.0 bar

Maximum Liquid temperature

45º C

Maximum Ambient temperature

65º C


Structural Characteristics

  • SS 410 Stainless Steel Shaft
  • Forged Brass Impeller
  • Cast Iron Motor Frame for better heat dissipation
  • Dynamically Balanced rotating parts
  • Double sealed precision ball bearing
  • In built - Thermal Overload Protector(TOP)
  • Back pull out design for easy service
  • Motor winding: Copper

Price Breakup:
Printed MRP: Rs. 4439
Extra Shipping Charges: Rs. 560

Manufactured, Marketed, and Dispatched by: Yash Manufactures

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
