Yash Pumps
Self Priming Pump 0.50HP 25x25mm YM-F2
Self Priming Pump 0.50HP 25x25mm YM-F2
नियमित रूप से मूल्य
Rs. 5,099.00
नियमित रूप से मूल्य
विक्रय कीमत
Rs. 5,099.00
कर शामिल हैं.
शिपिंग की गणना चेकआउट पर की जाती है।
मात्रा
पिकअप उपलब्धता लोड नहीं की जा सकी

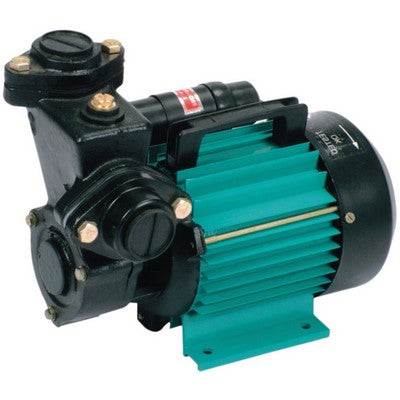

Domestic Self Priming Pump 0.50 H.P. 25mmx25mm F2
YM-F2
.jpg)
Approved by ISI
Description:
- Used for water supply in residential Bungalows, Flats, Hotels, Garages, Dairies and laundries.
- Water circulation for fountains and solar heater systems.
- Gardening and curing at civil works.
- Used as suction Booster in cities.
- Ornamental sprinklers.
Technical data:
| Power | 0.37kW |
| HP | 0.50 |
| Version | Single Phase, 160 – 240Volt |
| (Permanent Split Capacitor) | |
| RPM | 2880 |
| Frequency | 50Hz |
| Insulation Class | B |
| Duty Type | S1 (Continuous) |
Operating data:
| Duty Point Head | 27 Meters |
| Duty Point Discharge | 1120 LPH |
| Suction lift | 8 Meters |
| Total head | 34 Meters |
| Nominal pump size in mm | 25x25 (sucxdel) |
| Maximum Flow rate | 2.7 m³/hr / 2750 LPH |
| Maximum operating pressure | 3.4 bar |
| Maximum Liquid temperature | 45º C |
| Maximum Ambient temperature | 65º C |
Structural Characteristics:
- SS 410 Stainless steel shaft
- Forged Brass Impeller
- Aluminum Motor Frame for better heat dissipation
- Dynamically Balanced rotating parts
- Double sealed precision ball bearing
- In built - Thermal Overload Protector (TOP)
- Back pull out design for easy service
- Motor winding: Copper
Price Breakup:
Printed MRP: Rs. 4156
Extra Shipping Charges: Rs. 443
Manufactured, Marketed, and Dispatched by: Yash Manufactures
Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
