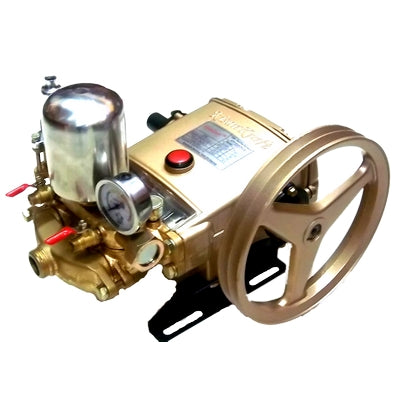

HTP Sprayer Cast Iron Head KK-18CI3
Description:
Disclaimer from KisanKraft / Farmboy: The purchase is not contingent upon a product demonstration. The purchaser shall satisfy himself with the product as desired, including any product demonstration or verification of any function, before buying. KisanKraft Limited or its authorized dealers, including online sellers, shall not be liable to give any on-site demonstration after purchase of any of the product.
Description:
| PRODUCT | HTP (Horizontal Triplex Piston) SPRAYERS(CAST IRON) |
| Product Particulars | KK-18CI3 |
| Engine Power required in HP | 1.1-1.4(hp) (1.5-2 kW) |
| Pump RPM | 800 - 1200 |
| Output Pressure | 10 – 40(Kg/cm2) |
| Suction Vol. | 10-18 (L/min) |
| Features and Usage | Portable( can be carried easily). Suitable for large spraying operations in orchards like mango, coffee, rubber plantations, apple, vineyards,ground crops and particularly for tall trees like coconut etc. Can be used for 4/2-wheeler service purposes and for irrigation as high lift water pumps |
| Guidance (Before use) | Before starting the Pump lift the pressure adjuster handle upward direction and after 1 min of use lift down the pressure adjuster handle. |
| Maintenance | Spray with clean water after spraying chemical Run the Pump (HTP) within in normal (Green) Meter range & Regularly tighten grease cup 2-3 cycles every 2 hrs of spraying. Replace the pump oil after the sprayer has been used for the first 10hrs, 50hrs, and then after every 70 hrs |
| Accessories (free in box) | Main Unit with Suction Pipe - 2.5 meter, Overflow Pipe-2.5mtr, O-Ring, Seals, Strainer Assembly Valves, Tool kit & User manual |
