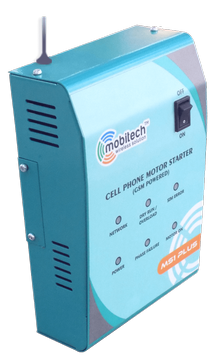

Mobitech Cell Phone Motor Starter Controller MS1 Plus

Mobitech Cell Phone Motor Starter Controller MS1 Plus

Rs. 0.00
Rs. 11,366.00 Rs. 0.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Mobitech Cell Phone Motor Starter Controller MS1 Plus

Description:
Features:
  1. Single phase, dry run, overload protection of pumps.
  2. Default 5 user access through internet IVRS and SMS.
  3. Remote ON/OFF, one time run timer, cyclic timer, real-time pump timer
  4. Power resume auto ON function.
  5. Multiple motor controls through single application.
  6. Real time power status display.
  7. Picture based application, no user language barrier.
  8. Android and IOS application.
  9. Remote support for software update.
  10. Easy to install and use.
  11. Recharge reminder.
  12. Works on low voltage and erratic power supply.
  13. High durability MS enclosure.
  14. High gain antenna for good signal reception.
  15. Elegant ON/OFF switch.
  16. Plug-n-Play connector for easy handle.
Technical Specifications:
SPECIFICATION Input Voltage:
170V-250V for single phase
370V-440V for Three phase

Power Consumption:5W

Wiring Kit:
(Power cable-0.5Sqmm 3 core,
CT Cable-0.5Sqmm 2 core,
ON,OFF,SDL cable-0.5Sqmm 7 core)

CT Coil:
30/5 for Single CT (External CT optional)

Battery: Li-ion 3.7 & 700mAh

Network Support: All GSM carriers(2G Only)

SIM: Micro

Dimension:12.4cm x 6.0cm x 18.2cm
Weight:1.5 kg
ENCLOSURE Metal Enclosure
DISPLAY NO Live Display
LED INDICATOR
  1. Network
  2. Dry run/Overload
  3. SIM Error
  4. Power
  5. Phase failure
  6. Motor ON
VOLAGE AND CURRENT SENSE
  1. 3 Phase Voltage(R,Y,B)
  2. 1 Phase Current(R)
  3. No of CT coils: 1
MOTOR ON/OFF
  1. Missed call
  2. SMS
  3. IVRS
  4. GPRS
(Android & iOS APP)
PHASE PREVENTOR
YES
TIMERS
  1. Auto Mode
  2. Daily Run Time
  3. Demand Run Time
  4. Schedule Timer
  5. Cyclic Timer
  6. Manual Run Time (MRT)
STAR DELTA DELAY TIMER YES
PROTECT MOTOR FROM
  1. Voltage Fluctuations
  1. Sudden failure of a phase
  2. Dry run & Over load
ADMINISTRATION
  1. It can be controlled through 5 mobile numbers
  2. It responds to registered mobile number only
  3. A1 is the super admin
LOW & HIGH
VOLTAGE ALERT 		YES
EXTERNAL CT We can extend CT up to 300Amp
EXTERNAL INTERFACE NO
DIGITAL I/O NO

(Note: This features isn’t possible to use, while MS1 fixed in semi automatic star delta starter )

Guarantee / Warranty:
1 Year full replacement Guarantee on all Mobitech models. (Warranty not covered for natural calamities)
