Yash Pumps

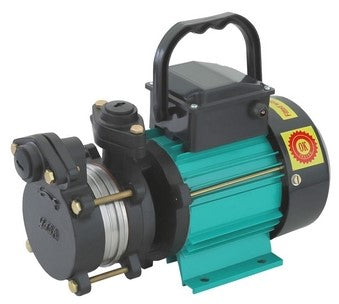

Self Priming Pump 0.50HP 12x12mm YM-DV1

Self Priming Pump 0.50HP 12x12mm YM-DV1

Rs. 4,999.00
Rs. 4,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Domestic Self Priming Pump 0.50 H.P. 12mmx12mm
YM-DV1

Description:
  • Used For Water Supply In Residential Bungalows, Flats, Hotels, Garages, Dairies And Laundries.
  • Water Circulation For Fountains And Solar Heater Systems.
  • Gardening And Curing At Civil Works.
  • Used As Suction Booster In Cities.
  • Ornamental Sprinklers.

Technical Data:

Power 0.37kW
HP 0.50
Version Single Phase, 160 – 240Volt
(Permanent Split Capacitor)
RPM 2880
Frequency 50Hz
Insulation Class B
Duty Type S1 (Continuous)

Operating Data:
Duty Point Head 18 Meters
Duty Point Discharge 1400 LPH
Suction lift 8 meters
Total head 32 meters
Nominal pump size in mm 12x12 (sucxdel)
Maximum Flow rate 2.7 m³/hr / 2750 LPH
Maximum operating pressure 3.2 bar
Maximum Liquid temperature 45º C
Maximum Ambient temperature 65º C

Structural Characteristics:
  • Ss 410 Stainless Steel Shaft
  • Forged Brass Impeller
  • Aluminum Motor Frame For Better Heat Dissipation
  • Dynamically Balanced Rotating Parts
  • Double Sealed Precision Ball Bearing
  • In Built - Thermal Overload Protector (Top)
  • Back Pull Out Design For Easy Service
  • Motor winding: Copper

Price Breakup:
Printed MRP: Rs. 4237
Extra Shipping Charges: Rs. 462

Manufactured, Marketed, and Dispatched by: Yash Manufactures

Guarantee:
One year Guarantee on manufacturing defects (excluding winding).
Winding is not at all covered in guarantee/warranty clause.
Manufacturer is committed for best after sales services.
For warranty related issue, send email to: info@yashpump.in & cc to: support@kisanestore.in
